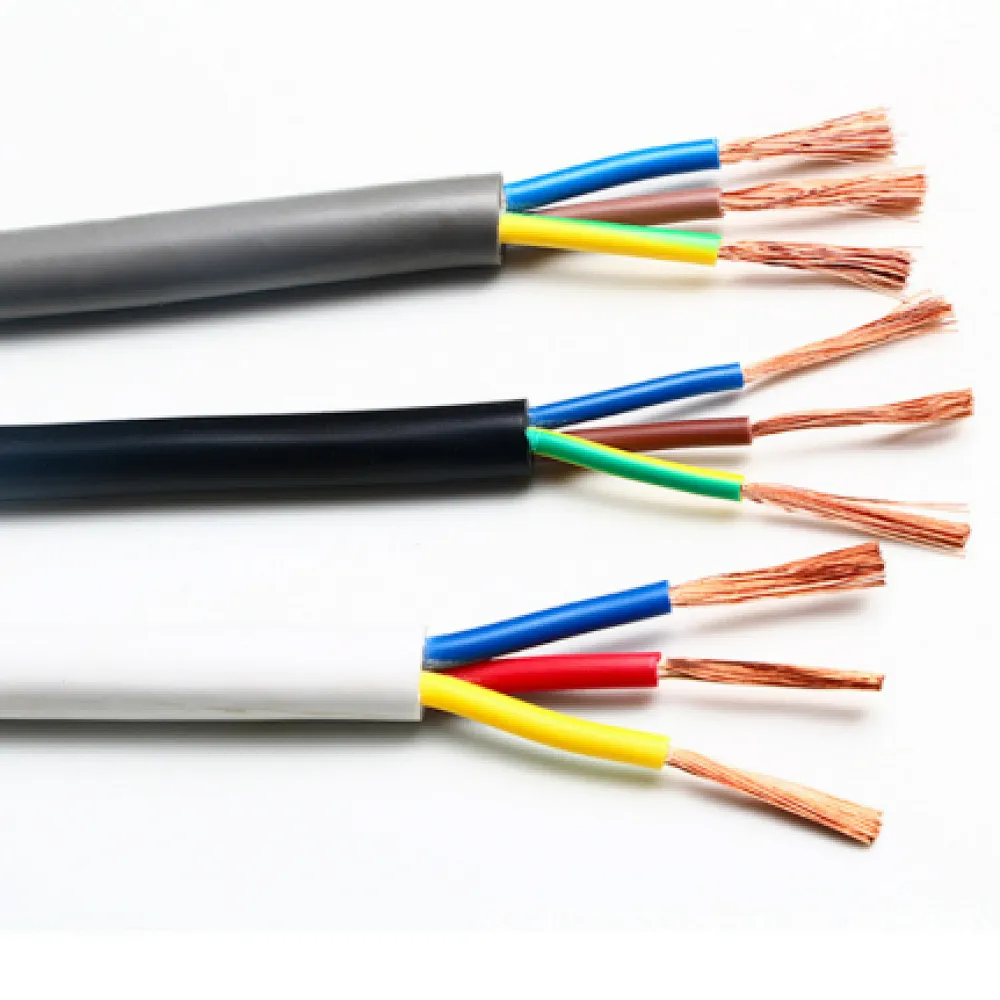

Factory Wire electric 2 core 4 core wire 80C 300V PVC insulated PVC sheathed multi conductor cable

Model NO. YHT-047
Categories: Hook-up wire
Factory Wire electric 2 core 4 core wire 80C 300V PVC insulated PVC sheathed multi conductor cable
Products description:

RVV cable:

sheathed multi conductor cable

  • Rated Voltage: 30V

  • Rated Temperature: 80ºC

  • Insulation Material: SR-PVC, PP

  • Jacket Material: PVC

  • Conductor: Tinned or Bare, Stranded or Solid Copper

  • Optional: AL-Mylar, Copper Braided, Copper Drain Wire

  • Reference Standard: UL758

  • Passes UL VW-1 & CSA FT1 vertical flame test.

  • Uniform insulation thickness of wire to ensure easy stripping and cutting.

  • For internal wiring of electronic and electrical equipment and appliance, Computer, USB Data Cable, Audio and Video, Electronic Circuits.


Style RVVMulti -core cable
sheathed multi conductor cable
Rating80, 90 or 105 deg C, 300 Vac, Horizontal flame.(sheathed multi conductor cable)
Conductor30 AWG - 2 AWG, solid or stranded
InsulationExtruded PVC.
Conductor sizeMinimum average thicknessMinimum thickness at any point
30-10 AWG15 mils13 mils
9-2 AWG30 mils27 mils

CoveringOptional, Extruded PVC, 9 mils minimum average thickness, 8 mils minimum thickness at any point.
StandardAppliance Wiring Material UL 758.
MarkingGeneral.
UseInternal wiring of appliances or electronic equipment where not subjected to movement or mechanical damage. Tag may also indicate the following,"600 Volts Peak for Electronic Use Only."
Advantage:
OEM is welcomed.sheathed multi conductor cable
We have provided support and service to our customers on their new design and new idea.
 Providing customized manufacturing solution from raw material selecting, production tools,
production technical and process to performance testing.sheathed multi conductor cable
Small MOQ can be negotiated. We can do more than manufacturing.
We always believe that cooperation is not only mutually beneficial, but also leads to mutual development together.
That’s why we are willing to consider small purchasing quantity. Tell me your demands, let’s work it out together.
