US $0.02 - US $0.08

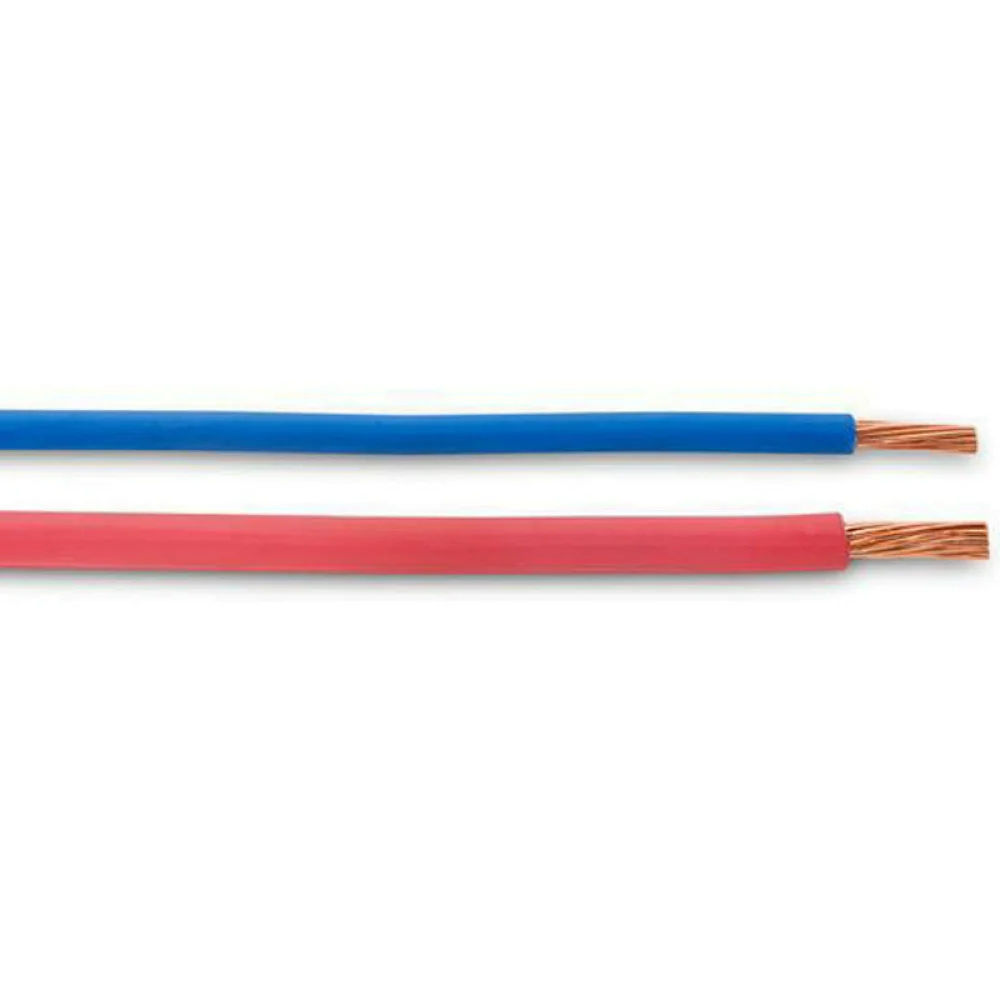

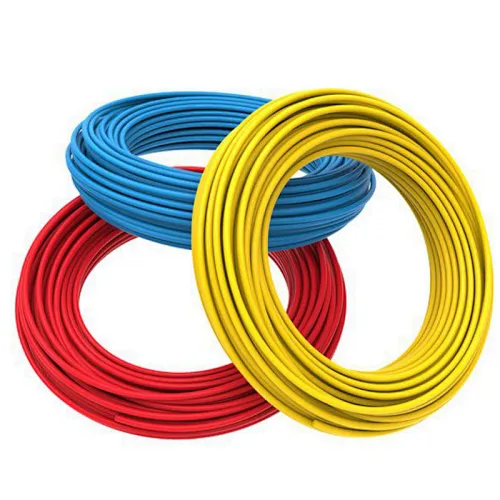

UL 1015 Wire Factory High Quality Single Core Cable PVC Copper Wire
What is UL1015 Wire?
UL 1015 hook-up wire is a PVC hook-up wire which is an Appliance Wiring Material (AWM) style that is based on
the requirements of UL Standard 758, Appliance Wiring Materials. AWM 1015 is a general style for a single
conductor wire that has an 80, 90 or 105°C temperature rating. UL 1015 wire also has a wide variety of applications
including internal wiring for appliance and electronic equipment, panels, meters, point-to-point wiring, wiring and
cable assemblies in data and electronic equipment and many other applications.
|Subj.758||Section 1 Page 1015|
|Style 1015||Single conductor with extruded insulation|
|Rating||80, 90 or 105 deg C, 600 Vac or 750 Vdc, Horizontal flame. Optional - 60 or 80 deg C Oil.|
|Conductor||30 AWG - 2000 kcmil, Solid or Stranded.|
|Marking||General. Tags may indicate the following: 2500 Volts Peak - For Electronic Use Only.|
|Standard||Appliance Wiring Material UL 758.|
|Use||Internal Wiring. Tags may indicate the following: 2500 Volts Peak - For Electronic Use Only.|
|Conductor size||Minimum average thickness||Minimum thickness at any point|
|30-9 AWG||30 mils||27 mils|
|8-7 AWG||45 mils||40 mils|
|6-2 AWG||60 mils||54 mils|
|1-4/0 AWG||80 mils||72 mils|
|250-500 kcmil||95 mils||86 mils|
|550-1000 kcmil||110 mils||99 mils|
|1100-2000 kcmil||125 mils||112 mils|
we also do customized other wire as your request.
