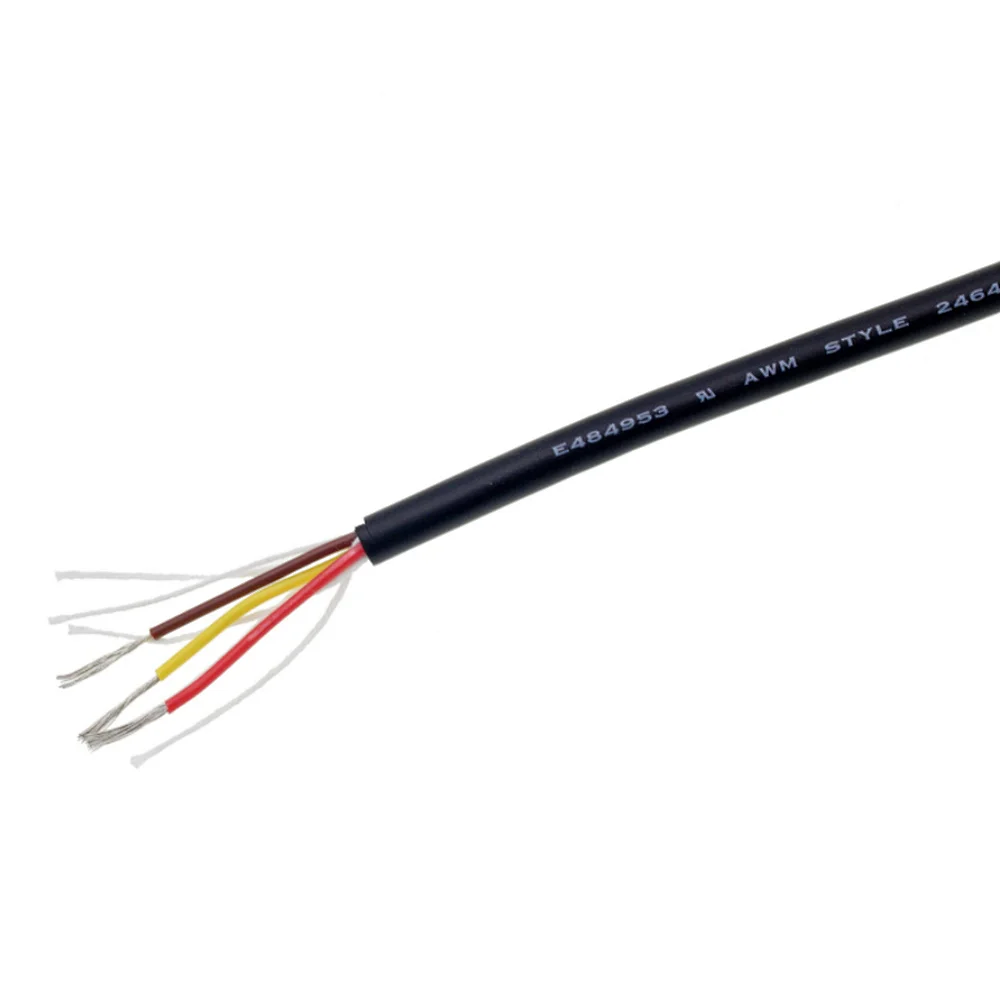

Sheath Cable UL2464 Multicore Cable Flexible PVC Wire and Cable
price
US $0.05 - US $1.00 / meters
YHT-023
EXW, FOB
500 meters
1000000meters / Month
China
10Day
Quantity
Sheath Cable UL2464 Multicore Cable Flexible PVC Wire and Cable
- Insulation Material: SR-PVC
- Jacket Material: PVC
- Conductor: Tinned or Bare, Stranded or Solid Copper
- Optional: AL-Mylar, Copper Braided, Copper Drain Wire
- Reference Standard: UL758, ROHS
- Passes UL VW-1 & CSA FT1 vertical flame test
- Uniform insulation thickness of wire to ensure easy stripping and cutting
- Universal UL2464 Multicore Cable, High Quality Sheath Cable Manufacturing
- Keywords: Sheath Cable, Multicore Cable, UL2464
| Item | Sheath Cable, UL2464 Multicore Cable | |||||||
| Rating | 80 deg C, 300 Vac | |||||||
| Insulated Conductor | Labeled or Complying with Manufacturer's AWM Procedure | |||||||
| Assembly | Two or more singles Twisted pairs of groups of twisted singles twisted together singles or groups of singles may be laid parallel to form flat oval or round cable. Lay not specified. Barrier layer and/or fillers optional. Manufacturer shall maintain a complete description of each assembly. May use same or mixed AWG size | |||||||
| Application | For internal wiring of electronic and electrical equipment and appliance, computer, audio and video, electronic circuits, signal transmission, etc. | |||||||
| Shield | Optional. | |||||||
