OEM IDC Connector UL2651 2.54mm 26AWG PVC Grey Flat Cable
YHT-048
100
15Day
OEM IDC connector flat cable,ul2651 grey cable,idc connector flat ribbon cable
Quantity

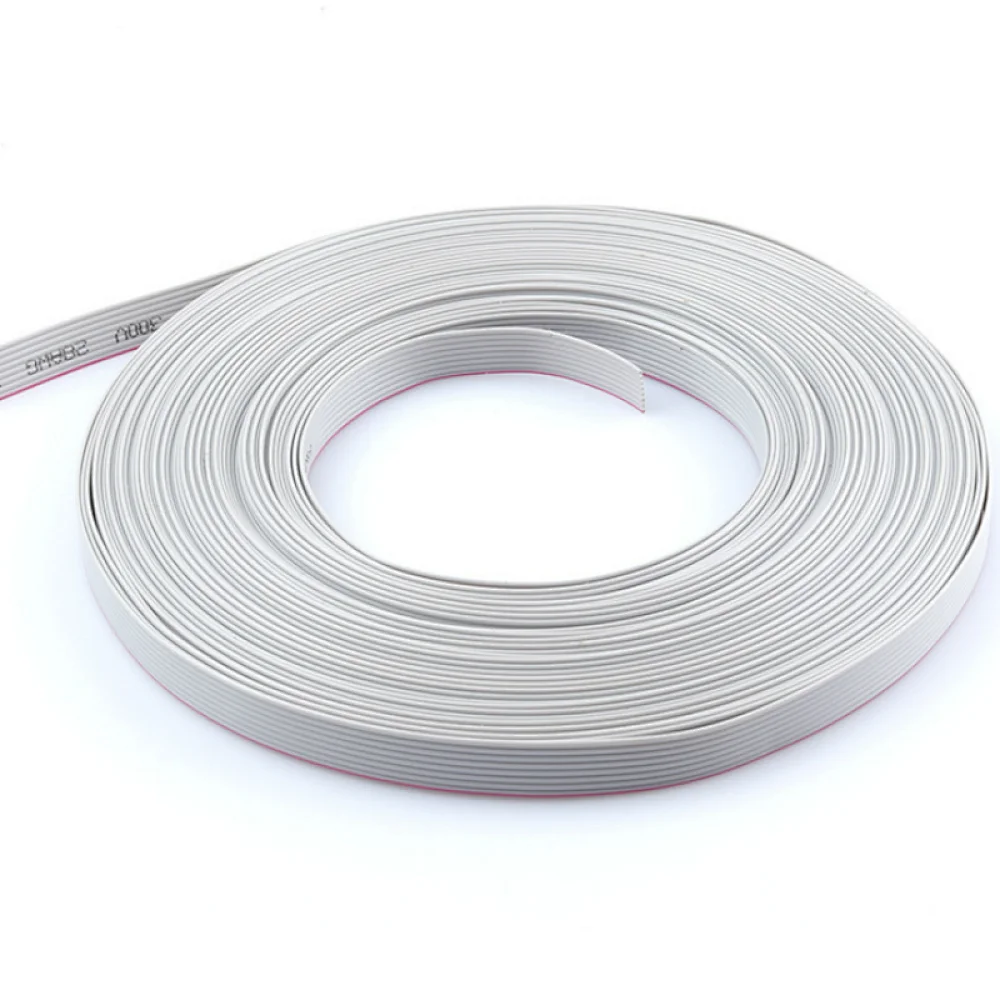

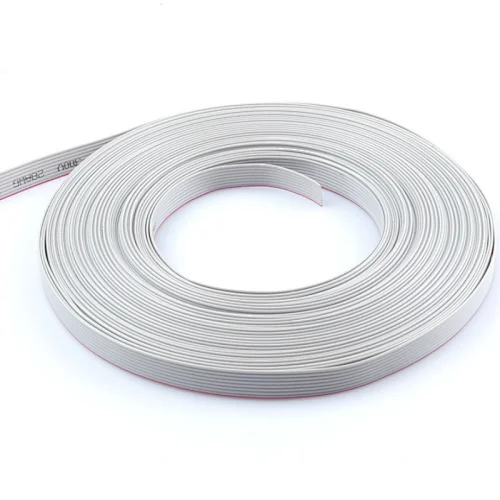

OEM IDC Connector UL2651 2.54mm 26AWG PVC Grey Flat Cable
Product Specification:
1 Rated Voltage: 300V
2 Rated Temperature: 80ºC
3 Insulation Material: PVC
4 Conductor: Tinned or Bare, Stranded or Solid Copper
5 Reference Standard: UL758, UL1581
6 Passes UL VW-1 & CSA FT1 vertical flame test.
7 Uniform insulation thickness of wire to ensure easy stripping and cutting.
8 For internal wiring of electronic and electrical equipment and appliance, computer, mainframe, lighting,electric circuit, etc.
High Light: OEM IDC connector flat cable, ul2651 grey cable, idc connector flat ribbon cable
Applicance : Desktop data transfer, Power transfer, Electronics
Product Specification:
1 Rated Voltage: 300V
2 Rated Temperature: 80ºC
3 Insulation Material: PVC
4 Conductor: Tinned or Bare, Stranded or Solid Copper
5 Reference Standard: UL758, UL1581
6 Passes UL VW-1 & CSA FT1 vertical flame test.
7 Uniform insulation thickness of wire to ensure easy stripping and cutting.
8 For internal wiring of electronic and electrical equipment and appliance, computer, mainframe, lighting,electric circuit, etc.
High Light: OEM IDC connector flat cable, ul2651 grey cable, idc connector flat ribbon cable
| Product Name | Gray Color 20 Pin UL2651 28AWG Flat Ribbon Cable |
| Applications | Desktop data transfer, Power transfer, Electronics |
| Wire Standard | American standard |
| Applicated Wire | 2651 28AWG |
| Conductor/Cable Pitch Range | 1.27mm |
| Connector pitch range | 2.54mm |
| Cable Conductor range | 6~40P, 6~50P, 6~64P |
| Connector Pins/Positions | 6~40P,6~50P, 6~64P |
| Cable Color | Grey with red edge or Grey with Blue edge |
| Connector color | Usually black, grey & red sometimes |
| Cable & Connector | Equivalent or Superior quality |
| Cable length | Any lengths customized by customers |
