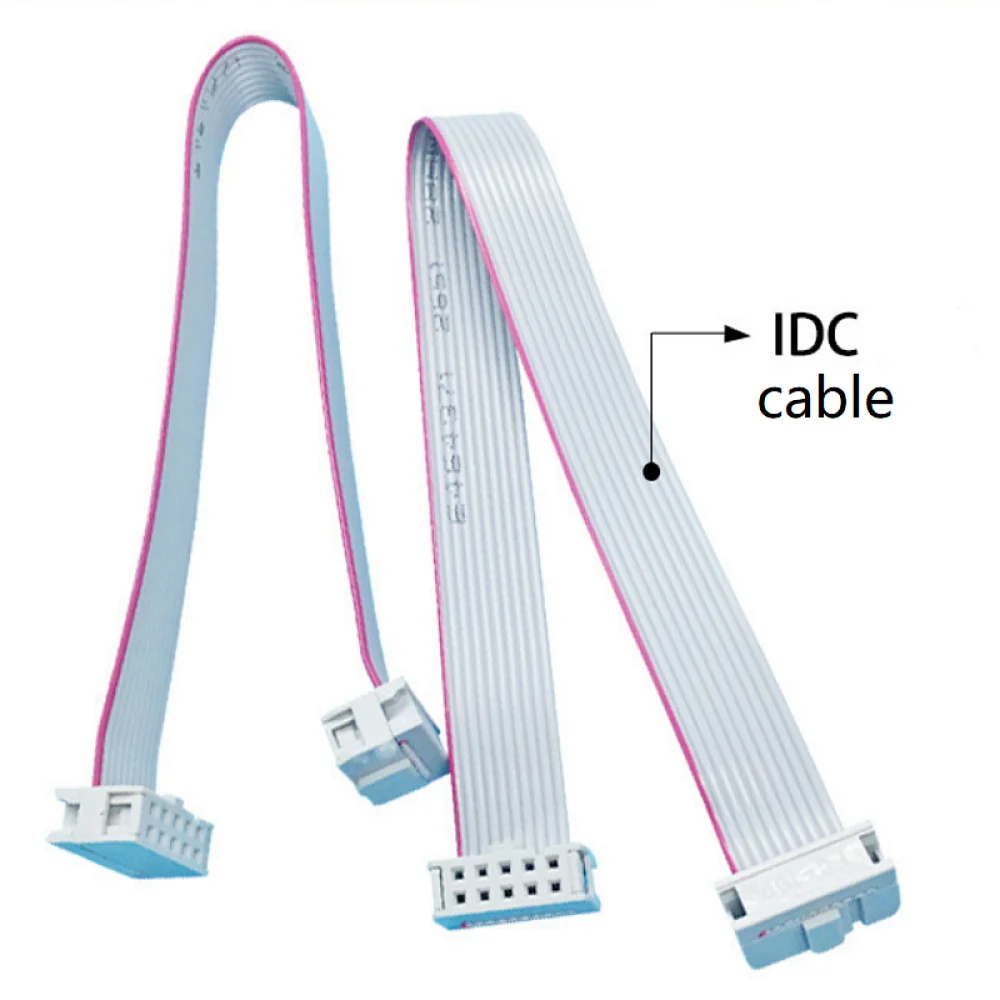

Flat Ribbon Cable IDC Flexible Ribbon Cable
price
US $0.10 - US $0.20 / pieces
YHT-049
EXW, FOB
100 pieces
15000pieces / Month
China
20Day
Quantity
Flat Ribbon Cable IDC Flexible Ribbon Cable
• Factory OEM UL 2651 IDC Cable, Pitch 1.27mm 28AWG Flexible Flat Ribbon Cable
• Conductor: Tinned or Bare, Stranded or Solid Copper
• Passes UL VW-1 & CSA FT1 vertical flame test.
• Uniform insulation thickness of wire to ensure easy stripping and cutting.
• For internal wiring of electronic and electrical equipment and appliance, computer, mainframe, lighting, electric circuit, etc.
• Factory OEM UL 2651 IDC Cable, Pitch 1.27mm 28AWG Flexible Flat Ribbon Cable
• Conductor: Tinned or Bare, Stranded or Solid Copper
• Passes UL VW-1 & CSA FT1 vertical flame test.
• Uniform insulation thickness of wire to ensure easy stripping and cutting.
• For internal wiring of electronic and electrical equipment and appliance, computer, mainframe, lighting, electric circuit, etc.
| Product | Flat Ribbon Cable. |
| Rating | 105 deg C, 300 Vac, Horizontal flame. |
| Conductor | 36 AWG - 14 AWG, solid or stranded. |
| Insulation | Extruded PVC or heat laminated PVC, 9 mils minimum average thickness, 7 mils minimum thickness at any point. |
| Assembly | Two - 150 conductors. Top or bottom layers may form ridges. Sections of the cable, may be split into singles or groups of conductors. |
| Shield | Optional. |
| Covering | Optional. Extruded PVC, 5 mils minimum thickness at any point, 80 mils maximum thickness. |
| Standard | UL 758, UL1581 |
| Type | Custom Made Flat Ribbon Cable |
| Usage | Internal wiring of Electronic equipment. |
