Electrical Cable UL1569 Single Core Cable Factory Flexible Wire

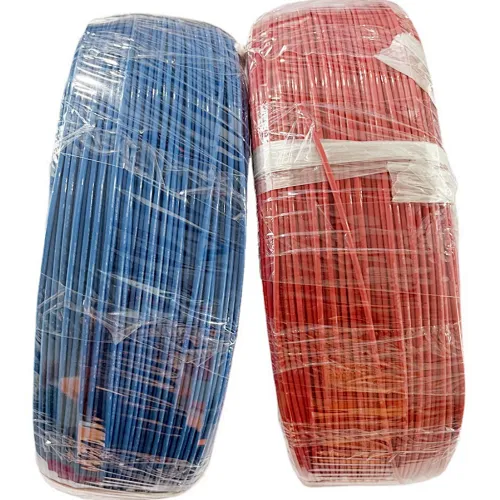

610 meters
Electrical Cable UL1569 Single Core Cable Factory Flexible Wire
  • Rated Voltage: 30V

  • Rated Temperature: 80ºC

  • Insulation Material: SR-PVC, PP

  • Jacket Material: PVC

  • Conductor: Tinned or Bare, Stranded or Solid Copper

  • Optional: AL-Mylar, Copper Braided, Copper Drain Wire

  • Reference Standard: UL758 Single Core Cable

  • Passes UL VW-1 & CSA FT1 vertical flame test.

  • Uniform insulation thickness of wire to ensure easy stripping and cutting.

  • Custom Single Core Cable, Customized Length, Color, Flexible Wire
  • Factory Electrical Cable, widely applied for internal wiring of electronic and electrical equipment and appliance

Keywords: Electrical Cable, Single Core Cable, Flexible Wire

 Style 1569 Single Conductor with Extruded Insulation Electrical Cable
 Rating 80, 90 or 105 deg C, 300 Vac, Horizontal flame.
 Conductor 30 AWG - 2 AWG, solid or stranded
 Insulation Extruded PVC.
Conductor sizeMinumum average thicknessMinumum thickness at any point
30-10 AWG15 mils13 mils
9-2 AWG30 mils27 mils
 Covering Optional, Extruded PVC, 9 mils minimum average thickness, 8 mils minimum thickness at   any point.
 Standard Appliance Wiring Material UL 758 Flexible Wire Cable
 Marking General
