factory custom 2 core 4 core multi-core shielded wires and cables
price
US $0.10 - US $1.50
YHT-050
EXW,FOB
610 meters
100000meters / Month
Xiamen,Fujian,China
15Day
Quantity

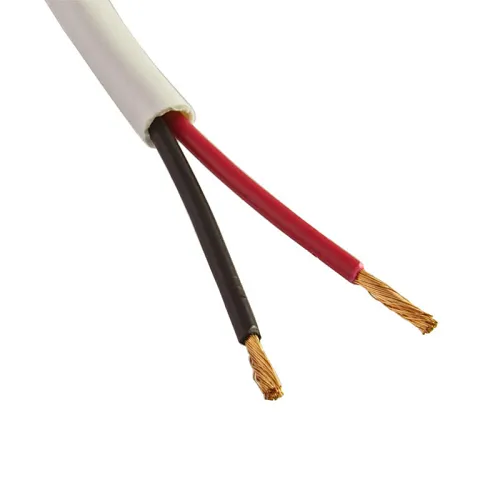

Wire electric 2 core shielded cable PVC insulated power supply cords
UL2733 600v multi conductor cable
• Solid or stranded, tinned or bare copper conductor 30~10AWG
• PVC insulation ,comply with ROHS environmental standard
• PVC jacket, comply with ROHS environmental standard
• Uniform insulation thickness to ensure easy stripping and cutting
• Multiple-conductor cable using non-integral jacket
UL2733 600v multi conductor cable
• Solid or stranded, tinned or bare copper conductor 30~10AWG
• PVC insulation ,comply with ROHS environmental standard
• PVC jacket, comply with ROHS environmental standard
• Uniform insulation thickness to ensure easy stripping and cutting
• Multiple-conductor cable using non-integral jacket
Rating | 105 deg C, 600 Vac, Horizontal Flame. | |||
Insulated | Labeled Style 2733 | |||
Assembly | Two to seven conductors cabled together. Length of lay not specified. Fillers optional. Maximum diameter of cable assembly under jacket is 0.350 inches.2 core shielded cable | |||
Packaging | Bulk Packing or as request | |||
| Usage | Internal Wiring | |||
Jacket | Extruded PVC, 15 mils minimum average, 12 mils minimum at any point. | |||
Standard | Appliance Wiring Material UL 758. | |||
Marking | General.2 core shielded cable | |||
Lead time | 15-20 days, depend on specific order. | |||
Sample time | Within 7 days. | |||
